Scania Next-Gen Dual Color Position Lights Top High-Beam (2023+)

Scania Next-Gen Dual Colour Position Lights Top High-Beam (2023+)

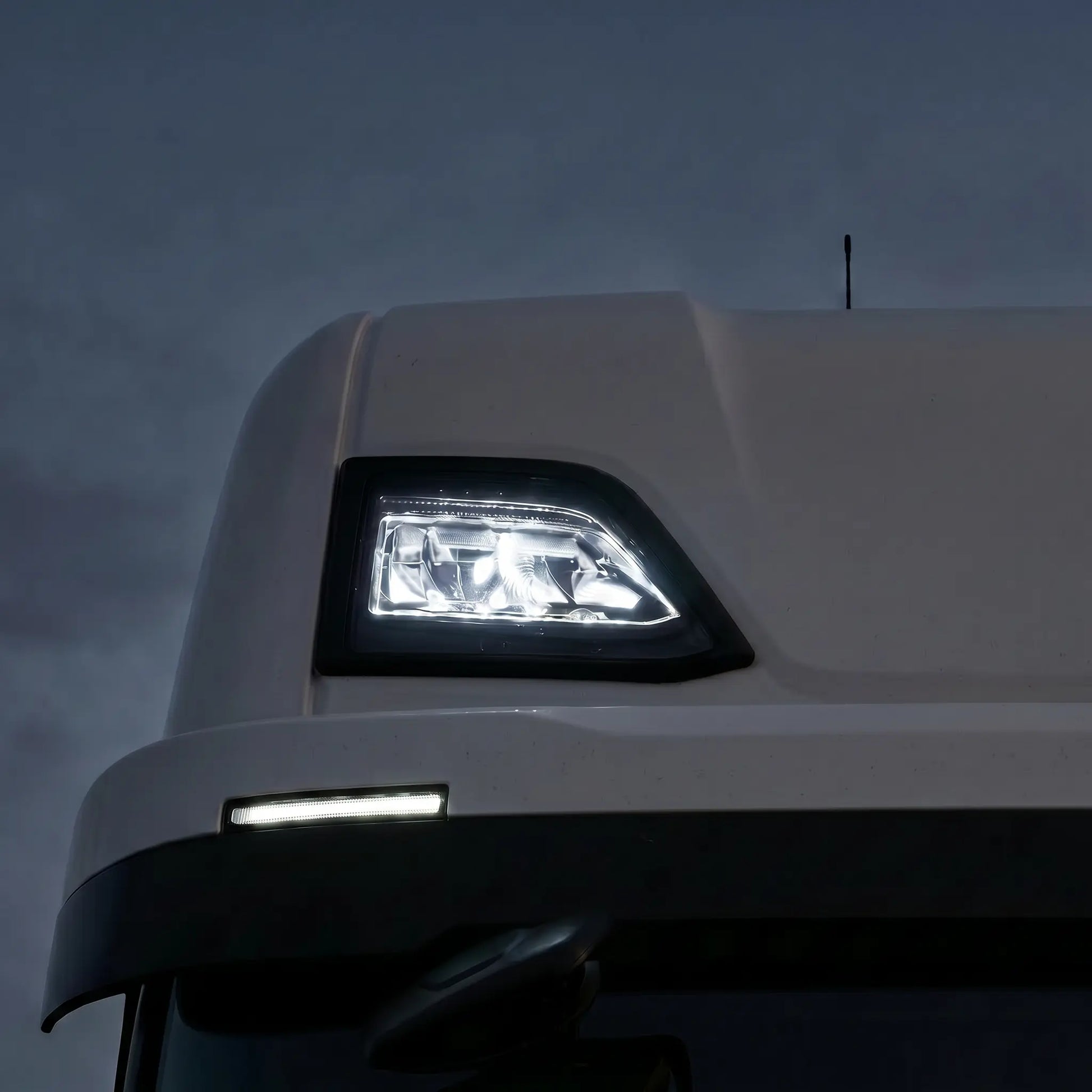

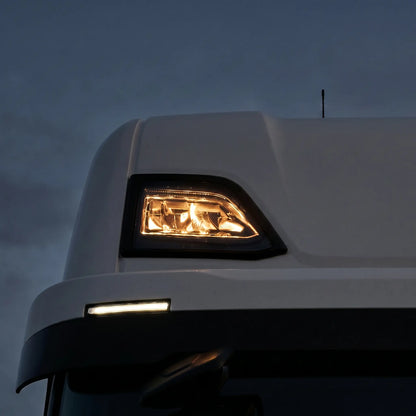

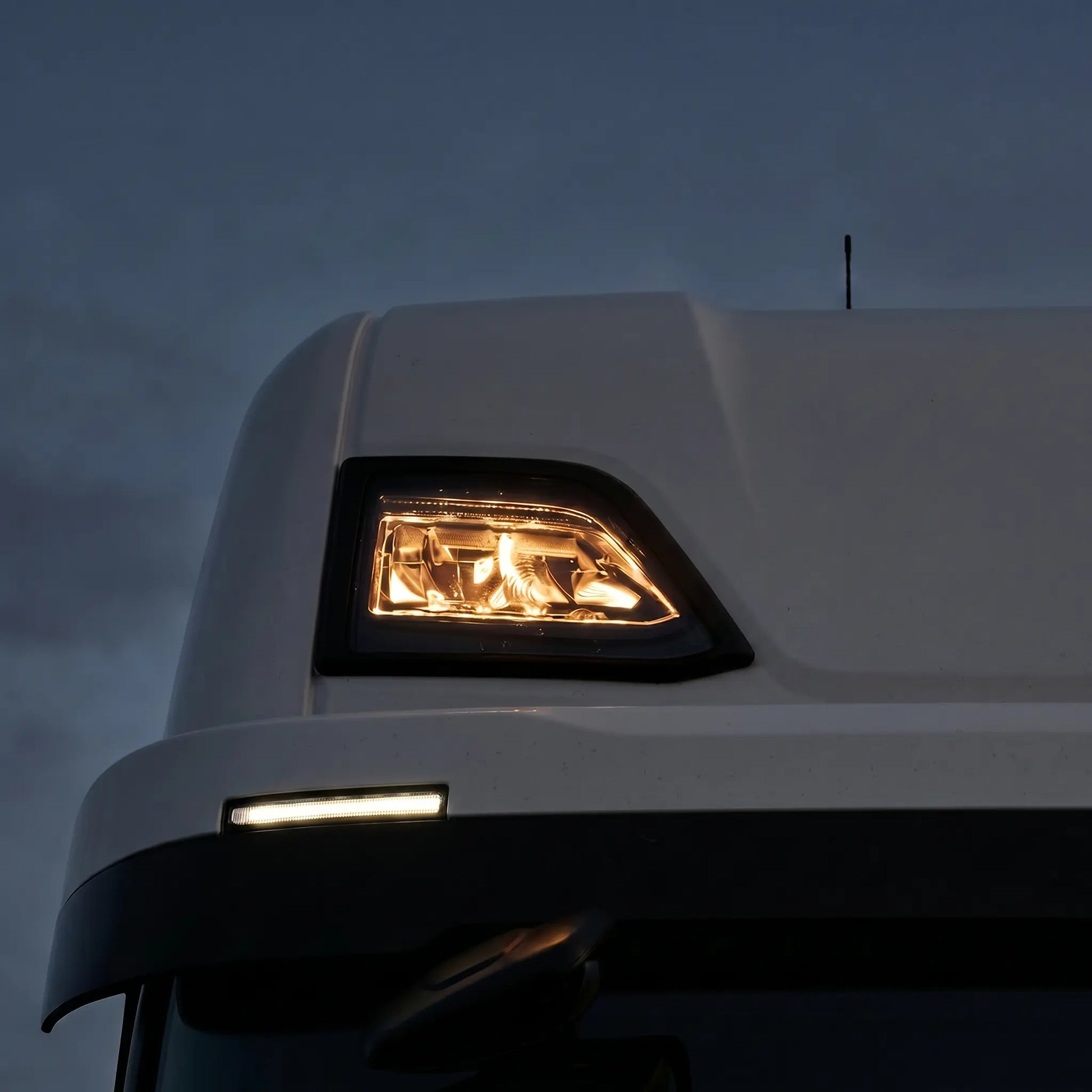

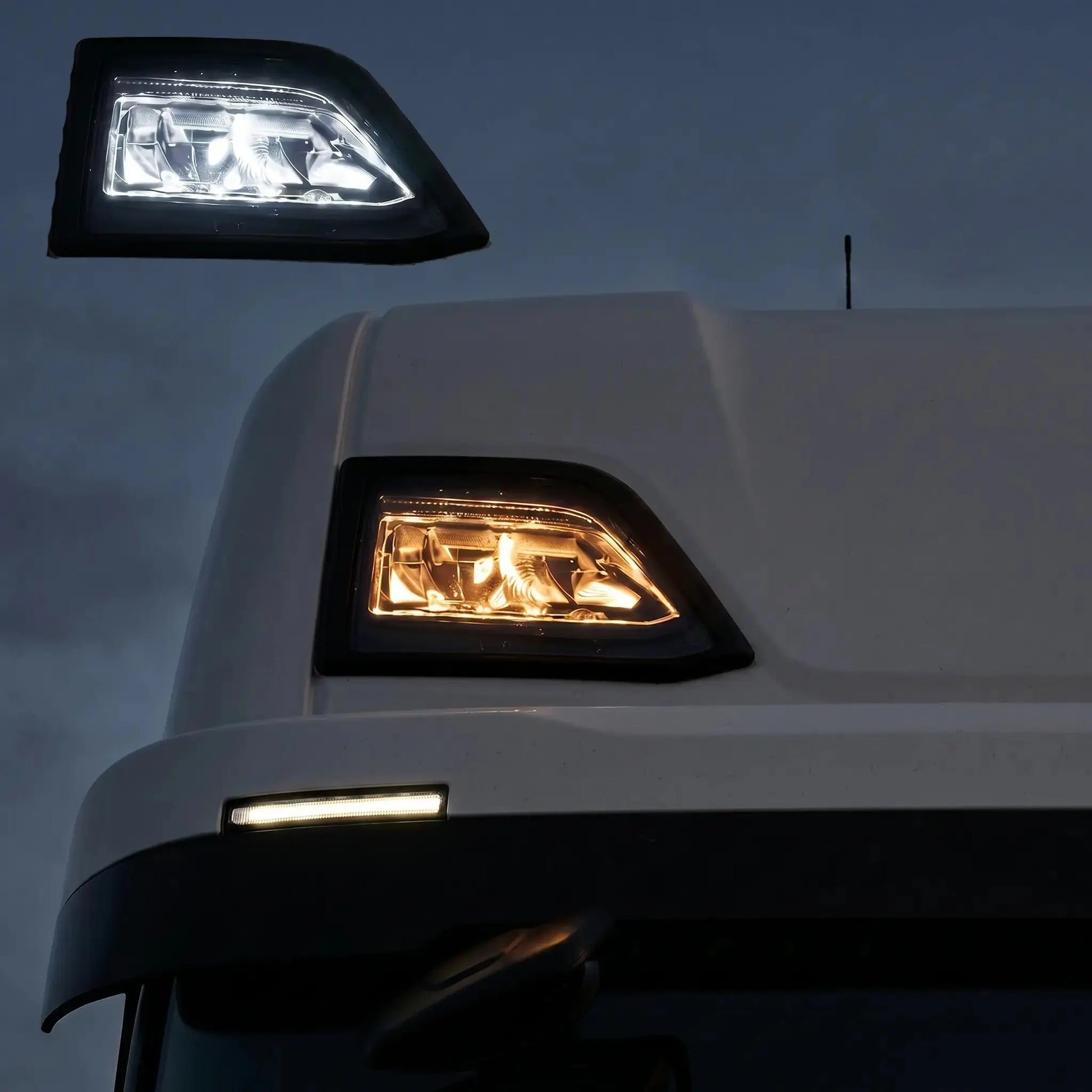

Light up the full reflector of your Scania top high beams with dual colour.

Mounts directly on top of the existing board — no permanent modifications needed. Switch between amber and xenon white at the flick of a toggle, while keeping the original high beam fully functional.

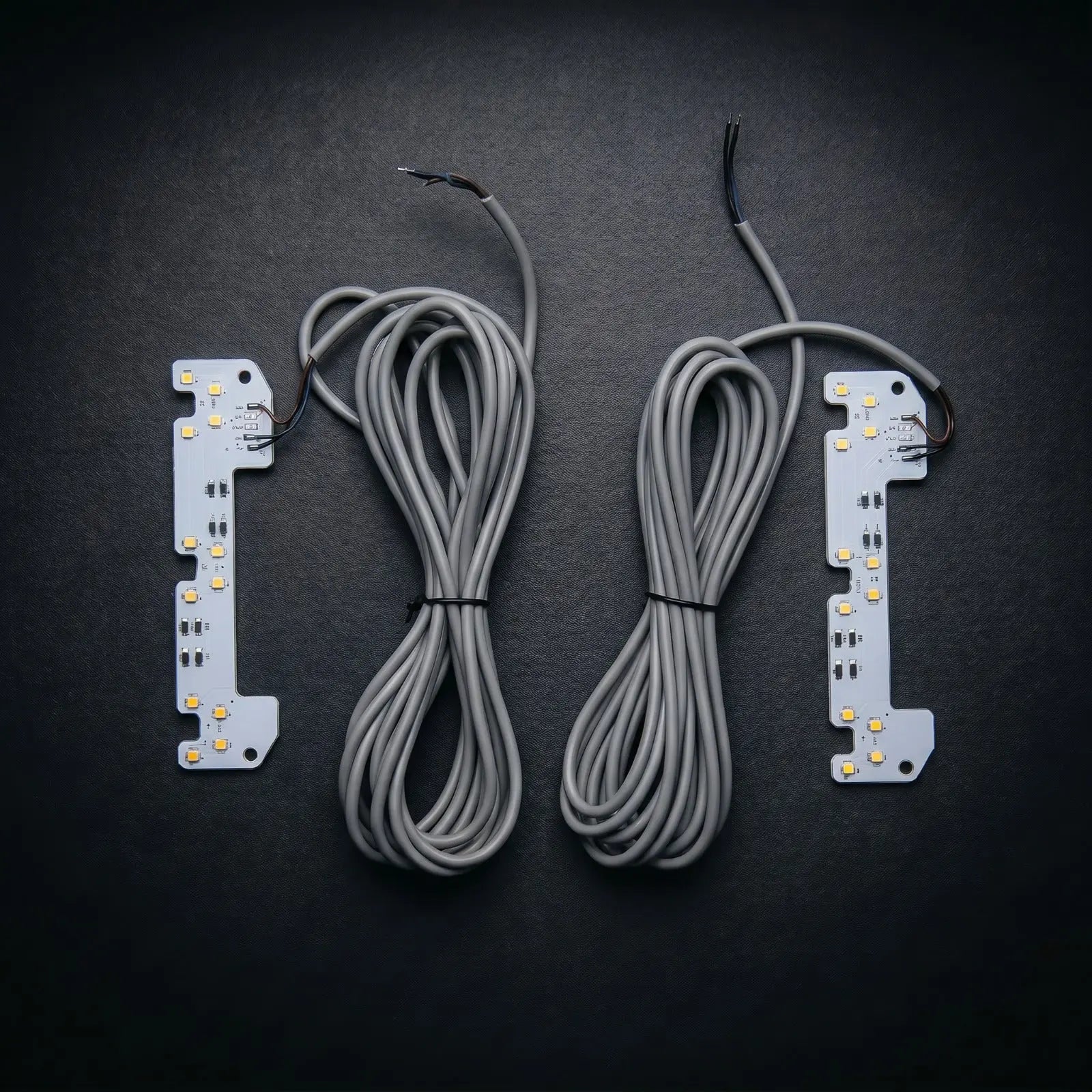

Kit Includes:

• 2x Dual colour LED boards (left + right)
• Spacers and screws
• 3 metres of cable per board



There is 3 meter cable on each board. There is one minus and two plus-wires. You should never have both colors turned on, so you need to use a toggle switch to change between the colors.

• Minus/ground - Brown cable
• Plus for white position light - White cable
• Plus for yellow position light - Green cable

Installation:

Remove all screws from the back of the heatsink to open the lamp. Remove the screws holding the original board — the original board must remain in place. Place the included spacers between the original board and the new board, then fasten everything together with the screws.

Feed the cable through the lamp — either through a small drilled hole or through one of the existing valve holes on the back.
