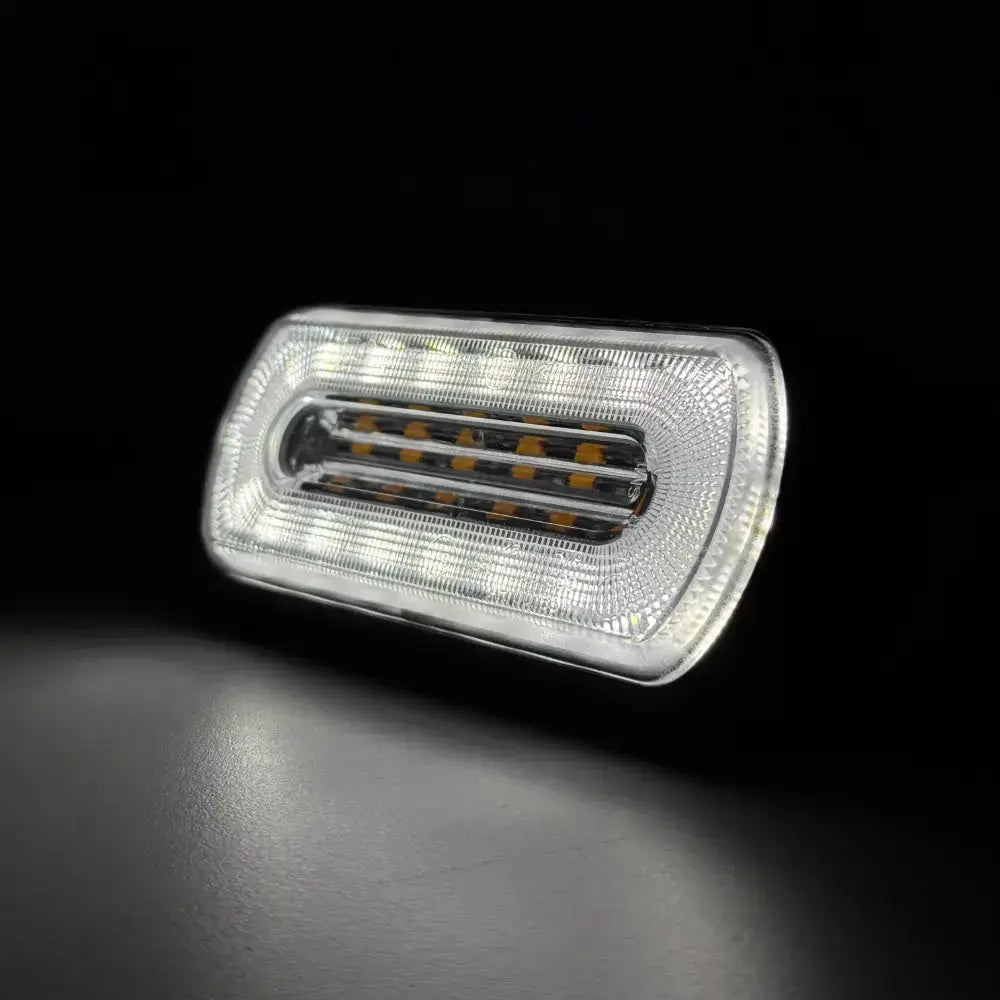

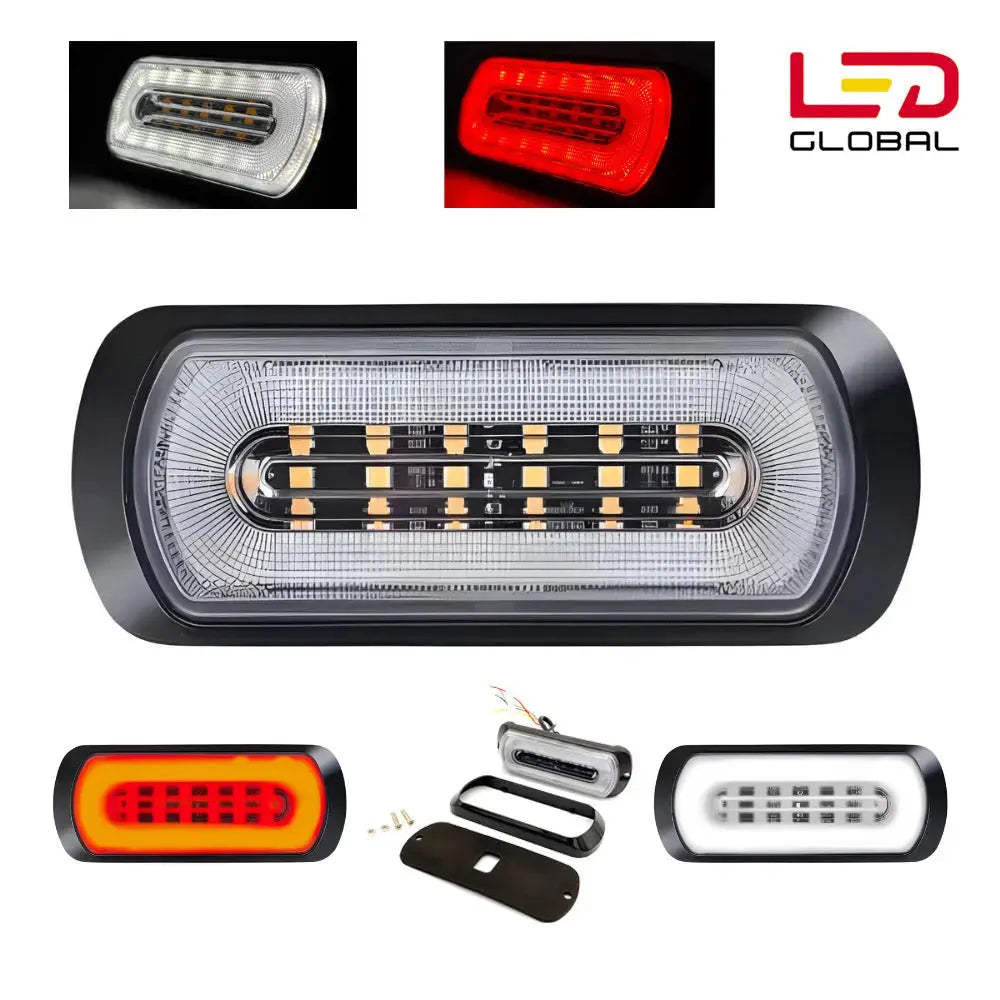

Amber HALO Strobe Warning Lamp R65, With Marker Light - 12/24v

Amber Strobe Warning Lamp: Reliable Safety and Visibility

SPECIFICATION:

Multi Voltage input 12-24VDC.
Lens colour: Clear.
Housing colour: Black.
Fuse rating: 2A.
LED: 6x Centre Strobe Warning LED's, 18x Halo Ring Marker LED's.
Max Current: 1.35A@12VDC / 0.75A@24VDC.
Max Wattage: 18W.

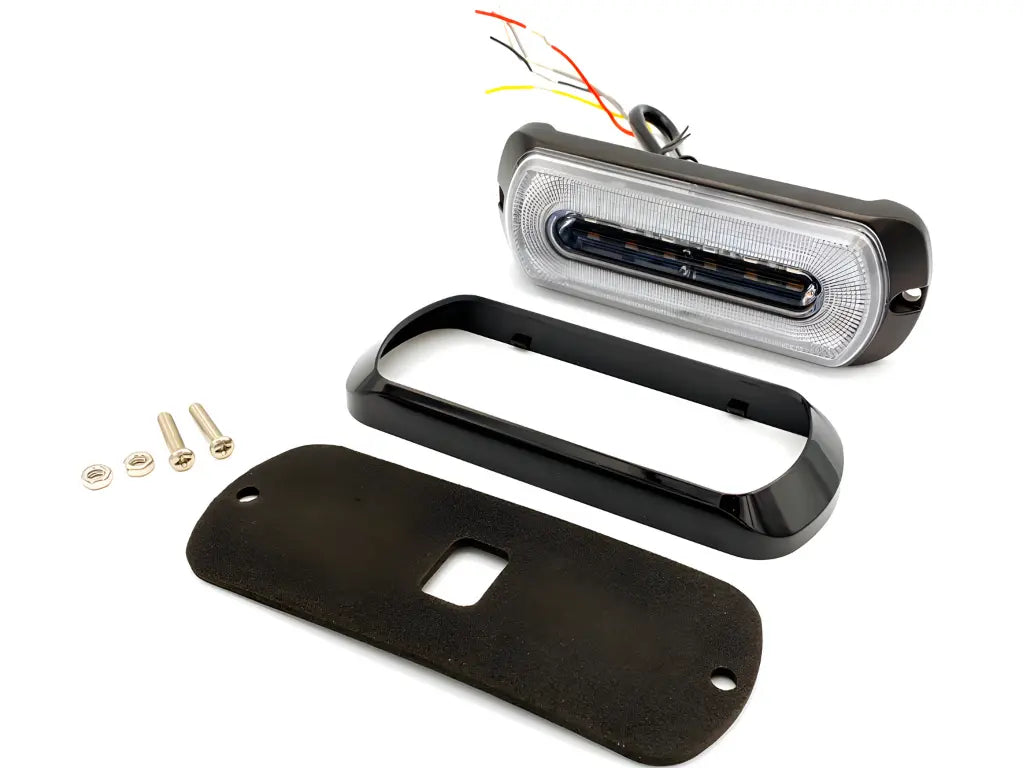

Mount: Horizontal.
21 Flash Patterns.Sync up to 14 lights in 2 separate groups.
Wire: Red - Positive (High intensity strobe light).
          Black - Negative.
          Yellow - Flash pattern selection & sync (apply to black for next flash pattern).
          Grey - Positive (Marker Halo Ring)
         White - Low intensity strobe light.

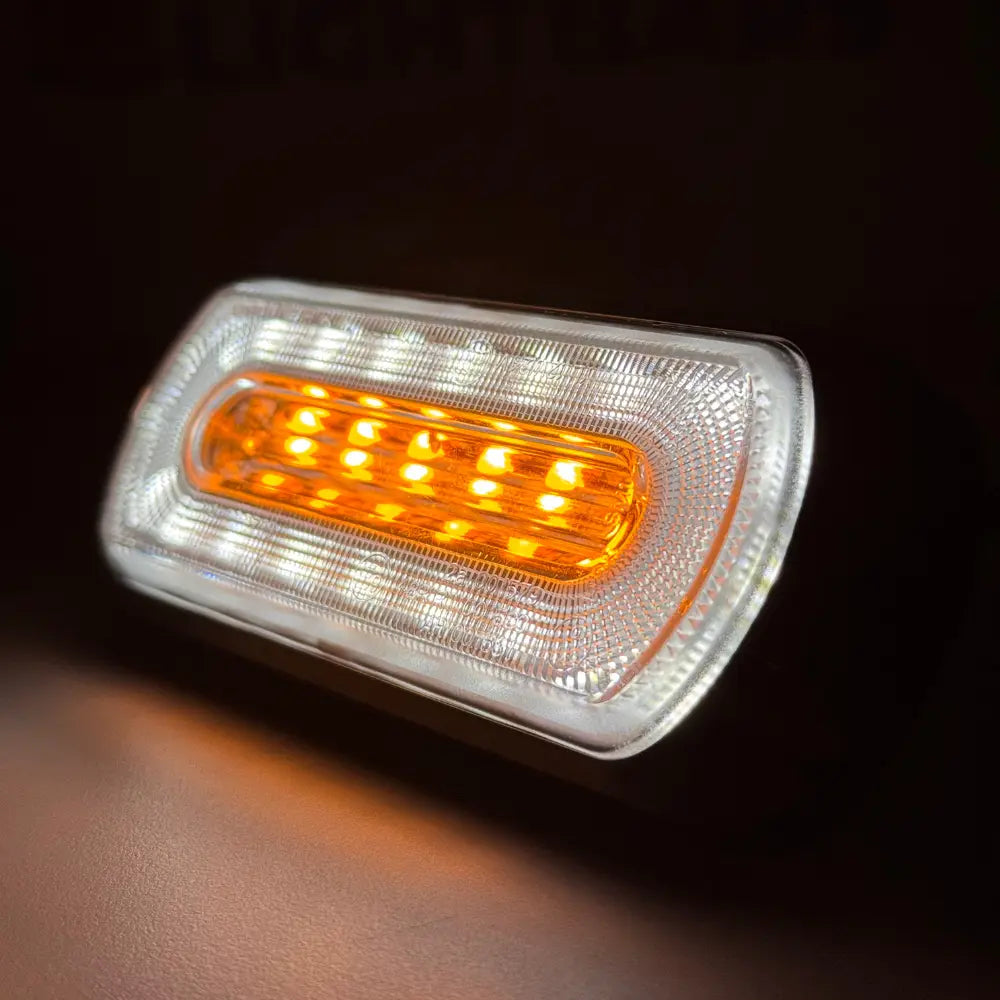

Strobe Colour:  Amber.
Marker Ring Colour: Amber (ECE R6), Red (ECE R7) or White (ECE R23).

FEATURES:

Up to 100,000 hours rated Long-Life LED.
Independent control for strobe and marker light (separate power cables).
Built in selectable flash patterns.
Memory recall for last flash pattern used at power up.
Weatherproof and vibration resistant.
Aluminium base for excellent heat dissipation.
Reverse polarity protection.
UV resistant lens.
Warranty: 2 Year.

APPROVALS:
ECE EMC R10, ECE R65 Class 1, ECE R148 (R6/R7/R23), E-Marked, CE, UKCA,  IP67 / IP69K, CISPR 25 Class 3, SAE J595 Class 1.

DIMENSIONS:
W:132mm x H:51mm x D:19mm.
Mounting hole centres: 120mm

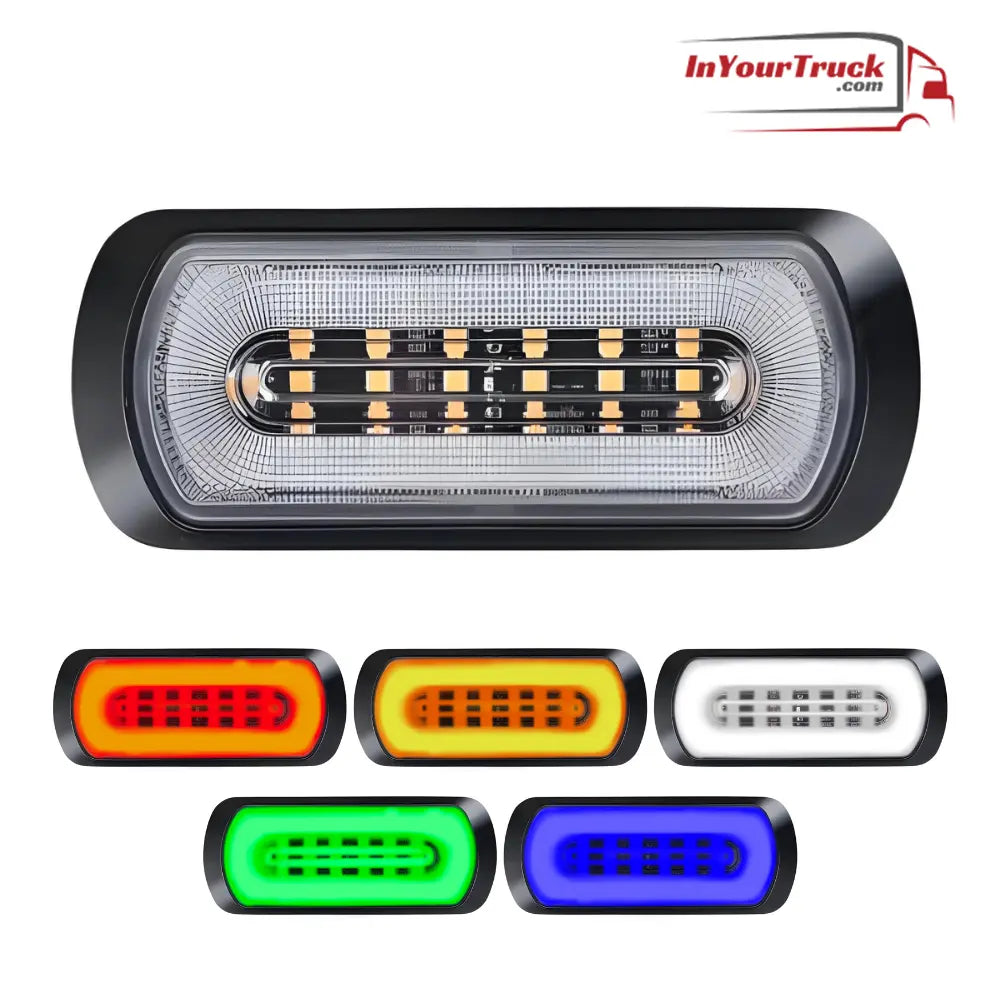

PART NUMBERS:

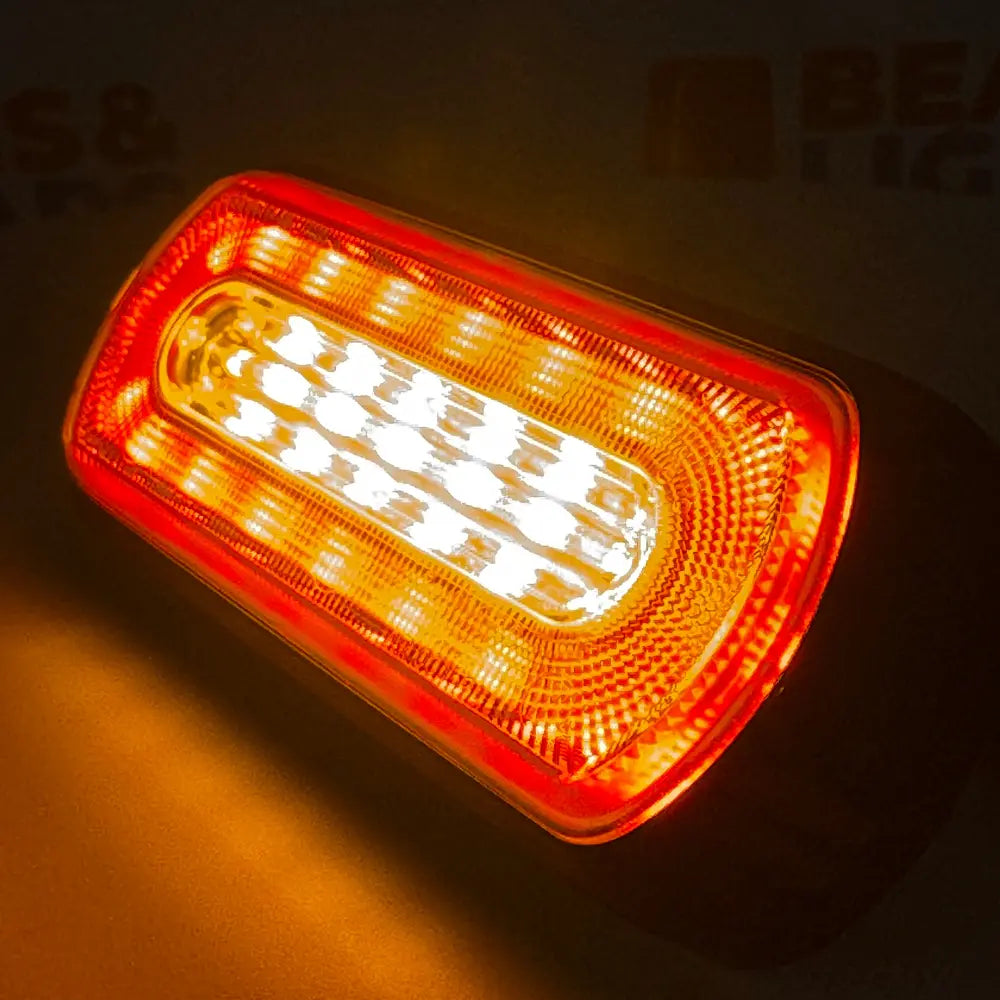

VMG-HALO-R - 6 LED Amber Warning/ 18 LED Red Halo

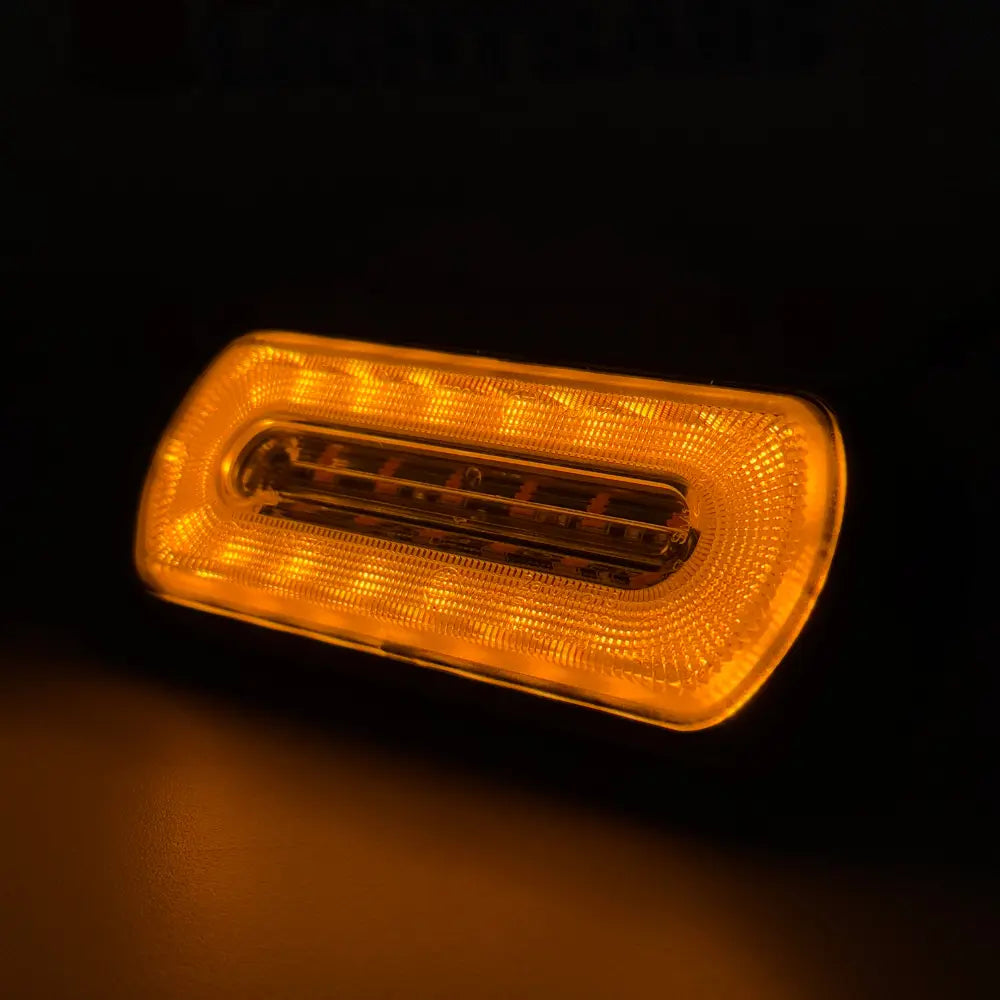

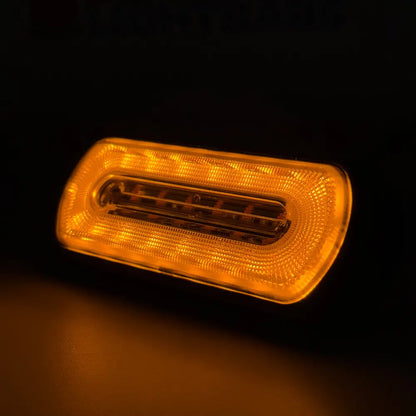

VMG-HALO-A - 6 LED Amber Warning/18 LED Amber Halo

VMG-HALO-W - 6 LED Amber Warning/18 LED White Halo

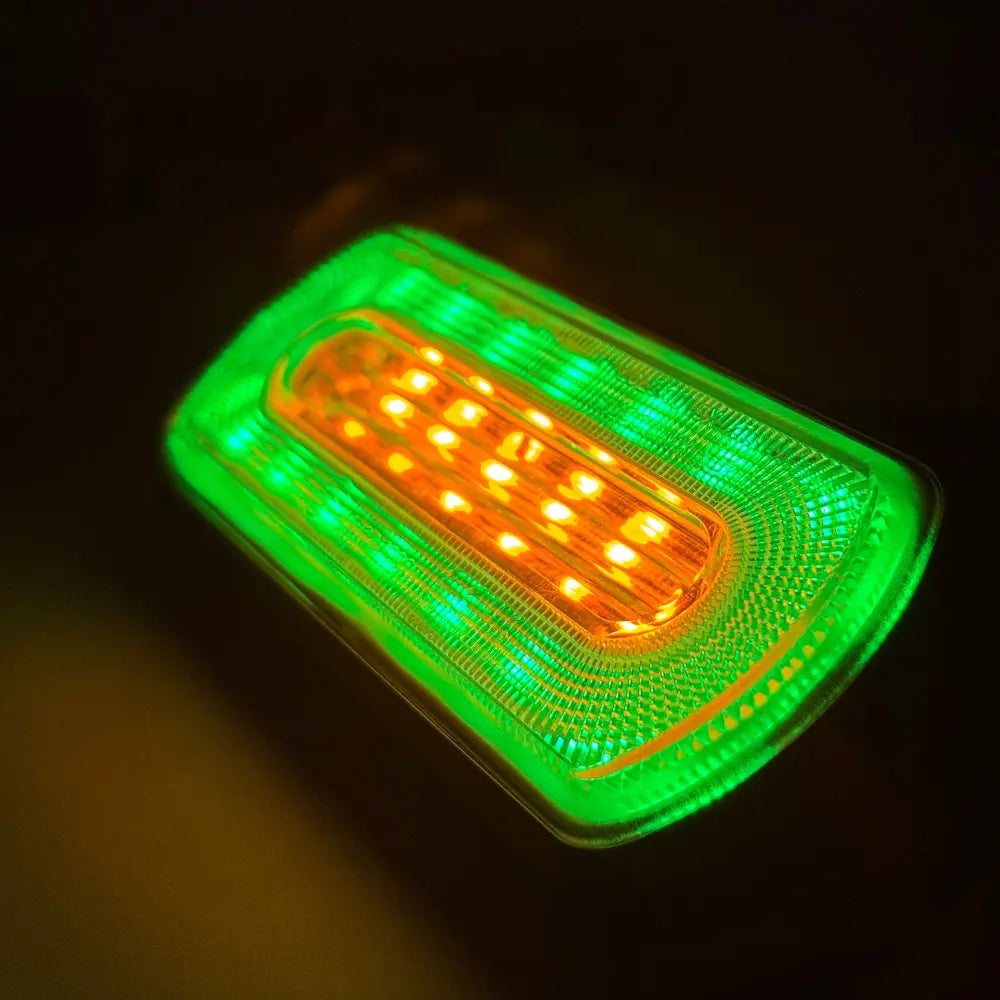

VMG-HALO-G 6 LED Amber Warning/ 18 LED Green Halo

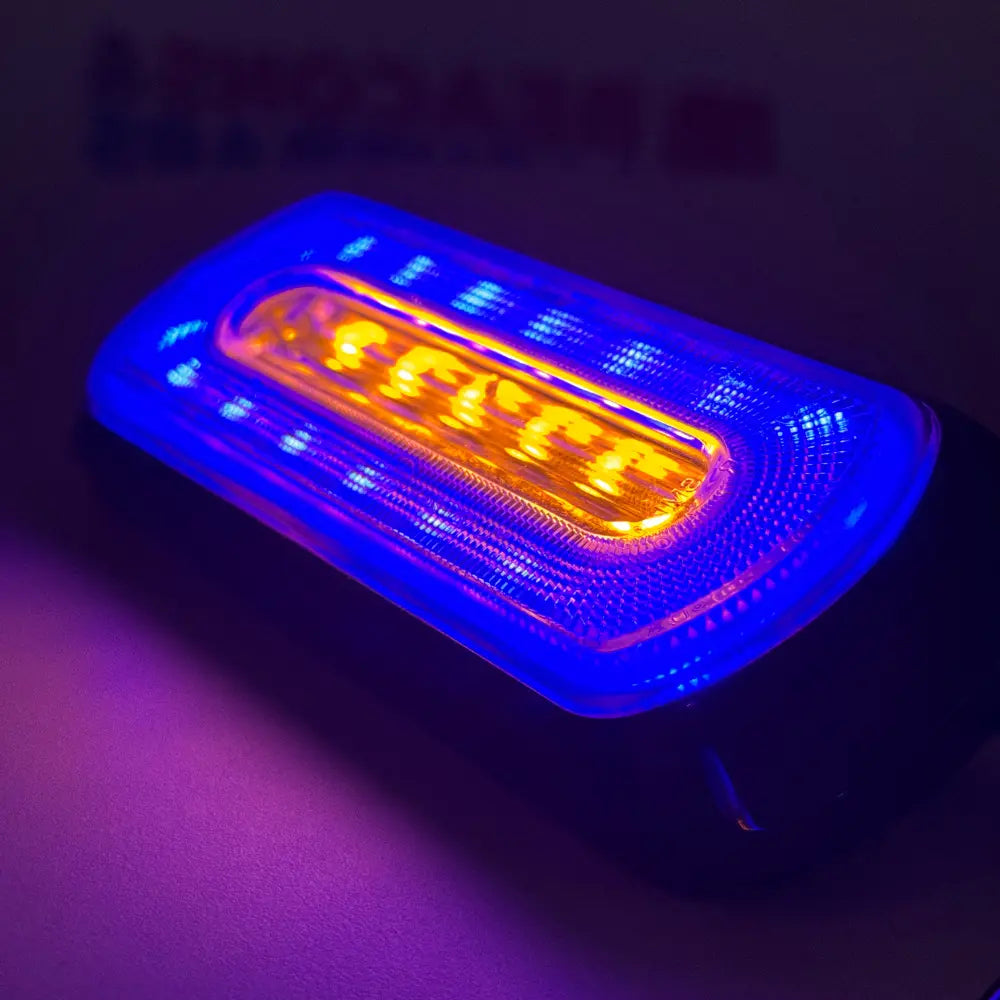

VMG-HALO-B 6 LED Amber Warning/ 18 LED Blue Halo

Overview of the Amber Strobe Warning Lamp

The amber strobe warning lamp is designed to provide high visibility and improved safety for vehicles operating in hazardous or low-visibility conditions. This HALO R65 compliant lamp operates on both 12v and 24v systems, making it versatile for a wide range of applications including construction, emergency, and industrial vehicles. Its bright strobe effect ensures that your vehicle remains clearly visible to others, reducing the risk of accidents. The lamp is built with durable materials that withstand harsh weather, ensuring long-term functionality and performance.

Key Features and Benefits

Featuring a robust and compact design, the amber strobe warning lamp offers dependable operation in demanding environments. The R65 certification guarantees compliance with safety regulations, assuring users of its effectiveness. Its dual voltage capability (12/24v) allows easy installation on different vehicle types without additional converters. The lamp’s bright amber light catches attention quickly, which is essential for roadside safety. Additionally, the HALO design not only enhances light dispersion but also adds a modern aesthetic, making it a practical and stylish choice for warning signals.

Applications and Usage

This amber strobe warning lamp is ideal for use on emergency vehicles, construction machinery, utility trucks, and other work vehicles requiring high visibility. It is perfect for marking hazardous zones, alerting nearby traffic, or signaling operational status. Thanks to its straightforward installation and solid build, it suits both temporary and permanent setups. Whether operating on a busy highway or within an industrial site, this lamp ensures maximum attention is drawn to your vehicle, enhancing overall safety for operators and pedestrians alike.
